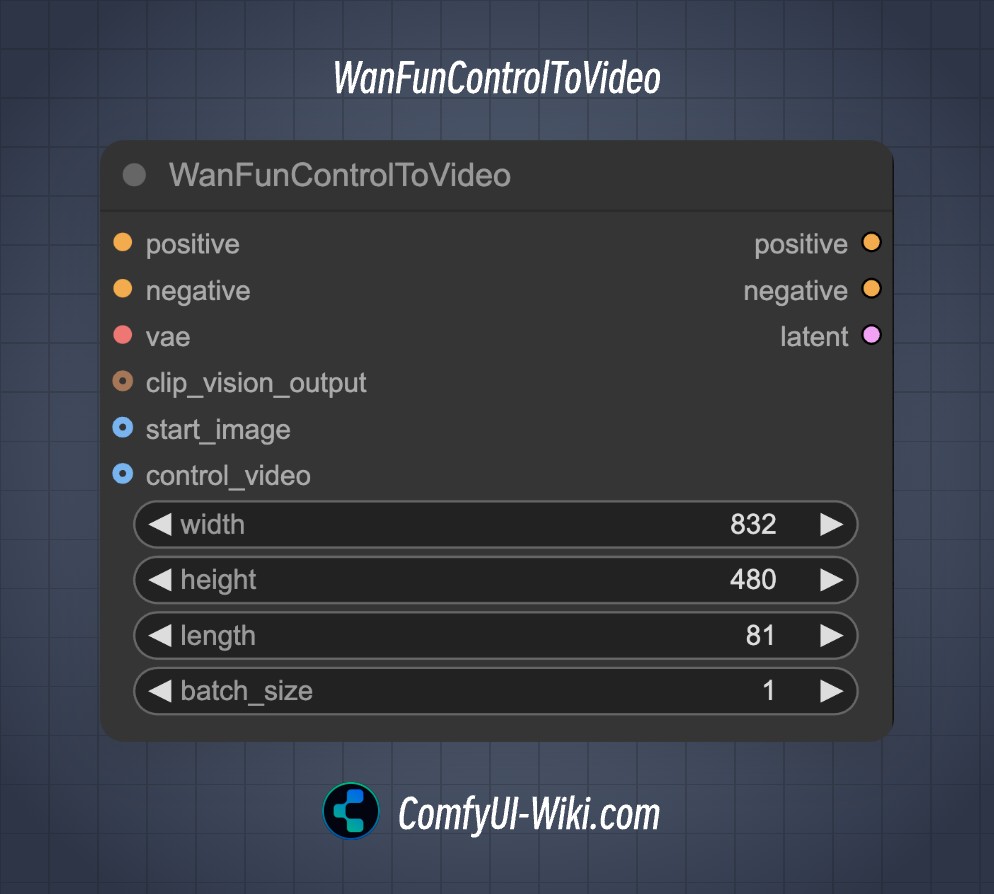

ComfyUI WanFunControlToVideo Node

This node was added to support the Alibaba Wan Fun Control model for video generation, and was added after this commit.

• Purpose: Prepare the conditioning information needed for video generation, using the Wan 2.1 Fun Control model.

The WanFunControlToVideo node is a ComfyUI addition designed to support Wan Fun Control models for video generation, aimed at utilizing WanFun control for video creation.

This node serves as a preparation point for essential conditioning information and initializes the center point of the latent space, guiding the subsequent video generation process using the Wan 2.1 Fun model. The node’s name clearly indicates its function: it accepts various inputs and converts them into a format suitable for controlling video generation within the WanFun framework.

The node’s position in the ComfyUI node hierarchy indicates that it operates in the early stages of the video generation pipeline, focusing on manipulating conditioning signals before actual sampling or decoding of video frames.

WanFunControlToVideo Node Detailed Analysis

Input Parameters

Output Parameters

Node Example Workflow

Please visit Wan Fun Control Node Example Workflow to understand how ComfyUI natively supports Wan Fun Control models.

Node Source Code

Node source code, code version 3661c833bcc41b788a7c9f0e7bc48524f8ee5f82

class WanFunControlToVideo:
    @classmethod
    def INPUT_TYPES(s):
        return {"required": {"positive": ("CONDITIONING", ),
                             "negative": ("CONDITIONING", ),
                             "vae": ("VAE", ),
                             "width": ("INT", {"default": 832, "min": 16, "max": nodes.MAX_RESOLUTION, "step": 16}),
                             "height": ("INT", {"default": 480, "min": 16, "max": nodes.MAX_RESOLUTION, "step": 16}),
                             "length": ("INT", {"default": 81, "min": 1, "max": nodes.MAX_RESOLUTION, "step": 4}),
                             "batch_size": ("INT", {"default": 1, "min": 1, "max": 4096}),
                },
                "optional": {"clip_vision_output": ("CLIP_VISION_OUTPUT", ),
                             "start_image": ("IMAGE", ),
                             "control_video": ("IMAGE", ),
                }}

    RETURN_TYPES = ("CONDITIONING", "CONDITIONING", "LATENT")
    RETURN_NAMES = ("positive", "negative", "latent")
    FUNCTION = "encode"

    CATEGORY = "conditioning/video_models"

    def encode(self, positive, negative, vae, width, height, length, batch_size, start_image=None, clip_vision_output=None, control_video=None):
        latent = torch.zeros([batch_size, 16, ((length - 1) // 4) + 1, height // 8, width // 8], device=comfy.model_management.intermediate_device())
        concat_latent = torch.zeros([batch_size, 16, ((length - 1) // 4) + 1, height // 8, width // 8], device=comfy.model_management.intermediate_device())
        concat_latent = comfy.latent_formats.Wan21().process_out(concat_latent)
        concat_latent = concat_latent.repeat(1, 2, 1, 1, 1)

        if start_image is not None:
            start_image = comfy.utils.common_upscale(start_image[:length].movedim(-1, 1), width, height, "bilinear", "center").movedim(1, -1)
            concat_latent_image = vae.encode(start_image[:, :, :, :3])
            concat_latent[:,16:,:concat_latent_image.shape[2]] = concat_latent_image[:,:,:concat_latent.shape[2]]

        if control_video is not None:
            control_video = comfy.utils.common_upscale(control_video[:length].movedim(-1, 1), width, height, "bilinear", "center").movedim(1, -1)
            concat_latent_image = vae.encode(control_video[:, :, :, :3])
            concat_latent[:,:16,:concat_latent_image.shape[2]] = concat_latent_image[:,:,:concat_latent.shape[2]]

        positive = node_helpers.conditioning_set_values(positive, {"concat_latent_image": concat_latent})
        negative = node_helpers.conditioning_set_values(negative, {"concat_latent_image": concat_latent})

        if clip_vision_output is not None:
            positive = node_helpers.conditioning_set_values(positive, {"clip_vision_output": clip_vision_output})
            negative = node_helpers.conditioning_set_values(negative, {"clip_vision_output": clip_vision_output})

        out_latent = {}
        out_latent["samples"] = latent
        return (positive, negative, out_latent)

Analysis of the encode Function

The encode function in the WanFunControlToVideo node is responsible for converting input parameters into conditioning information and latent space that will be used by subsequent video generation models.

The function first initializes an empty latent tensor named latent with a specific shape: [batch_size, 16, ((length - 1) // 4) + 1, height // 8, width // 8]. This tensor is placed on comfy.model_management.intermediate_device(), typically the available GPU. Next, another latent tensor concat_latent is initialized with the same shape as latent, used to store encoded information from the optional start_image and control_video inputs.

After processing the optional visual inputs, the concat_latent tensor now contains encoded information from start_image and control_video (if provided) and is added to both the positive and negative conditioning information under the “concat_latent_image” key using the node_helpers.conditioning_set_values function.

Finally, the function checks if clip_vision_output is provided. If so, it is also added to both the positive and negative conditioning under the “clip_vision_output” key. This allows visual features extracted by the CLIP model to further refine the generation process.

Additional Wan Fun Control Related Content

WanFun Control is primarily used with the Wan 2.1 model family. The method is inspired by ControlNet, a powerful technique widely used in image generation to modulate output through various spatial and structural inputs. WanFun Control extends these principles to the temporal domain of video, enabling users to achieve a high degree of influence over the generated video content, going beyond the limitations of purely text-driven methods. It utilizes visual information extracted from input videos (such as depth maps, edge contours (Canny), or human poses (OpenPose)) to facilitate the creation of controlled videos.

The Wan 2.1 model family is the foundation for WanFun Control, offering different parameter variants including 1.3B and 14B models, providing users with options to balance computational resources with desired output quality and complexity.

The basic concept of WanFun Control is utilizing visual cues from a reference video to guide the AI’s creative process. Users can provide a “control video” that embodies the desired motion or spatial arrangement, rather than solely relying on text prompts to determine the motion, structure, and style of the generated video. This allows for a more direct and intuitive way to create videos with specific characteristics. For example, a user might provide a video of a person walking, and the WanFun Control system will generate a new video of a different subject performing the same walking motion, while adhering to the text prompt for the subject’s appearance and the overall scene. This structured approach to video generation, combining visual data with textual descriptions, leads to outputs with higher motion accuracy, improved stylization effects, and the ability to achieve more intentional visual transformations.

Related Models and Code Repositories

• Wan-Video/Wan2.1: Open and Advanced Large-Scale Video Generative Models
• Wan2.1-Fun-1.3B-Control
• Wan2.1-Fun-14B-Control
• VideoX-Fun
